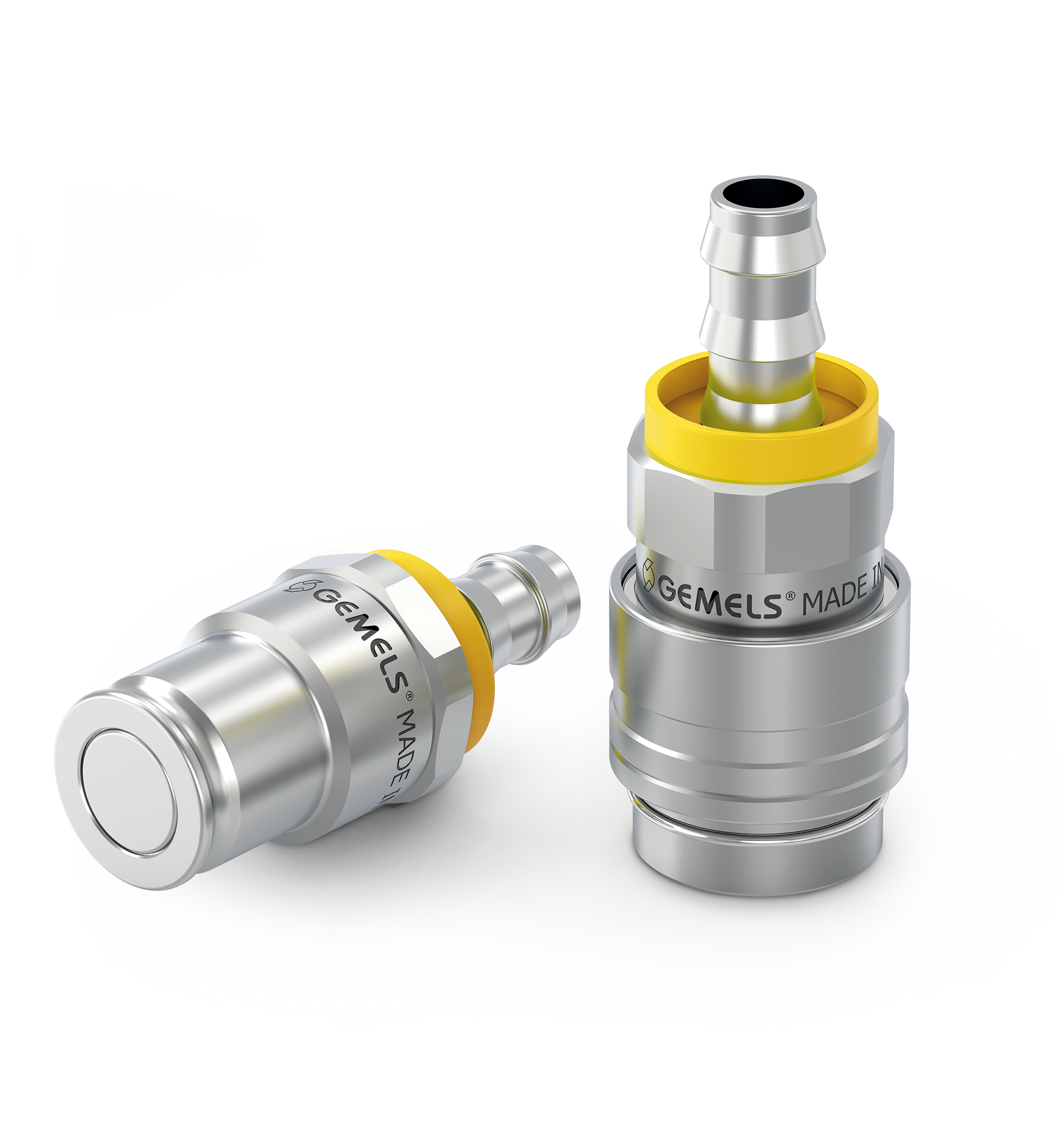

Raccords rapides à face plane pour systèmes de refroidissement

GNS

GNS_Gemels

Fiche Technique

Acier au carbone
Type Raccords rapides
Dimensions De DN10 à DN25
Pression jusqu'à PN200
Acier inoxydable
Type Raccords rapides
Dimensions De DN10 à DN25
Pression jusqu'à PN200
pdf ( 2.69 MB )
Détails techniques
QUICK COUPLINGS FLAT FACE GNS (MALE / FEMALE)
Code de l'article Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flux max l/min Flux min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de pilotage Pressure cracking MPa Pression max MPa Pression max pic MPa Pression max. rotative MPa Pression max. statique MPa Pression max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Plage de réglage MPa Établir une norme MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Poids kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC51N040000 QC GNS N 3/4 MALE 19 20 57 34 32.8 N3/4 0.49
NC52N040000 QC GNS N 3/4 FEMALE 19 20 49.5 84 40 N3/4 1.48
NC51S040000 QC GNS SAE12 MALE 19 20 61 34 32.8 1-1/16-12 UN 0.184
NC52S040000 QC GNS SAE12 FEMALE 19 20 49.5 89 40 1-1/16-12 UN 0.446
NC51N050000 QC GNS N 1 MALE 25 20 67.5 39.9 N1 0.78
NC52N050000 QC GNS N 1 FEMALE 25 20 57.05 93.5 50 N1 4.14
NC51S050000 QC GNS SAE16 MALE 25 20 69 41 39.9 1-5/16-12 UN 0.347
NC52S050000 QC GNS SAE16 FEMALE 25 20 57.05 93.5 50 1-5/16-12 UN 1.847
Code de l'article Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flux max l/min Flux min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de pilotage Pressure cracking MPa Pression max MPa Pression max pic MPa Pression max. rotative MPa Pression max. statique MPa Pression max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Plage de réglage MPa Établir une norme MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Poids kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC51S02S000 QC GNS SAE4 MALE 10 5 47 24 19.85 7/16 - 20 UNF 0.108
NC52S02S000 QC GNS SAE4 FEMALE 10 5 28.5 56 24 7/16 - 20 UNF 0.291
NC51S02S001 QC GNS SAE6 MALE 10 5 47 24 19.85 9/16 -18 UNF 0.1
NC52S02S001 QC GNS SAE6 FEMALE 10 5 28.5 55 24 9/16 -18 UNF 0.281
NC51K020000 QC GNS HOSE 3/8 MALE 10 5 59.5 24 19.85 HOSE 3/8 0.079
NC52K020000 QC GNS HOSE 3/8 FEMALE 10 5 28.5 67 24 HOSE 3/8 0.257
NC51S02S002 QC GNS SAE8 MALE 10 5 49.5 24 19.85 3/4 -16 UNF 0.091
NC52S02S002 QC GNS SAE8 FEMALE 10 5 28.5 57.5 24 3/4 -16 UNF 0.273
NC51S03S000 QC GNS SAE8 MALE 12.5 5 53.5 32 24.3 3/4 -16 UNF 0.187
NC52S03S000 QC GNS SAE8 FEMALE 12.5 5 35.5 71.5 32 3/4 -16 UNF 0.503
NC51S03S001 QC GNS SAE10 MALE 12.5 5 57 32 24.3 7/8-14 UNF 0.191
NC52S03S001 QC GNS SAE10 FEMALE 12.5 5 35.5 76.5 32 7/8-14 UNF 0.518
NC51S03S002 QC GNS SAE12 MALE 12.5 5 59.5 32 24.3 1-1/16 -12 UN 0.173
NC52S03S002 QC GNS SAE12 FEMALE 12.5 5 35.5 79 32 1-1/16 -12 UN 0.499
NC51K030000 QC GNS HOSE 1/2 MALE 12.5 5 70 32 24.3 HOSE 1/2 0.149
NC52K030000 QC GNS HOSE 1/2 FEMALE 12.5 5 35.5 88.5 32 HOSE 1/2 0.468
Télécharger : Catalogues et dessins

INNESTI RAPIDI GNS

DATASHEET
pdf ( 2.69 MB )
